DPS-L2 Audio Player by Jaben x Oriolus

DPS-L2 Audio Player by Jaben x Oriolus

Regular price $2,098.00 USD
Regular price $2,198.00 USD Sale price $2,098.00 USD
Sale Sold out
Tax included.

SKU:4589757912393



DPS-L2 Player - Limited Edition (999 pc)

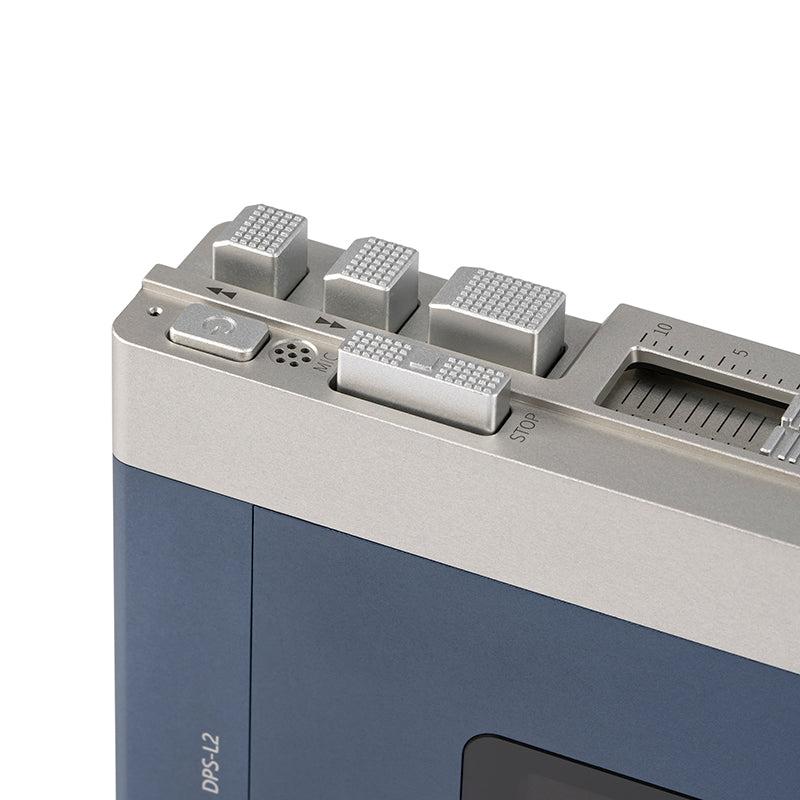

The DPS-L2 is a collaboration product between Oriolus and Jaben China. The design trace back to the legendary cassette players, and similarly the tonality pursues the natural, balanced tonality as heard on the retro gears. We spared no cost and effort in restoring the button mechanics on a classic portable cassette player, just to bring back the joy of traditional operation.

The ESS flagship decoding chipsets ES9038Pro is chosen as the DAC for its ultra low distortion and low noise performance. OPA1612 is implemented as the LPF ("low-pass filter"), and high quality audiophile-grade capacitors are installed around the audio pathway, together with a true analog Alps volume pot; no compromises were made to achieve the best sound quality. A fully discreet, 6-way amplifier circuit is built in, 4 circuits belonging to the balanced output and 2 to the single end output; both BAL and SE are capable of 200mA of output current, which promises ultimate responsiveness and strong dynamic in the music replayed.

The system also includes advanced features including native DSD decoding, HiByLink, two-way Bluetooth transmission, two-way USB transmission etc.

The total quantity of DPS-L2 is limited to 999 only. Every unit has its own series number ( - / 999 )



Sharing Is Caring

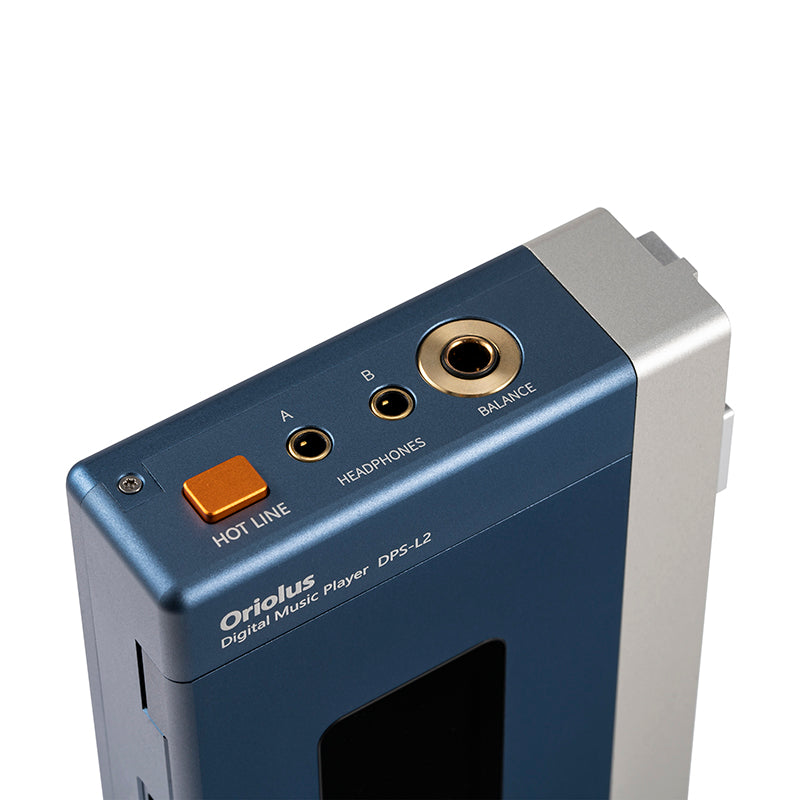

One special feature on board is the two 3.5mm headphone jacks, which can be used to power two different IEMs simultaneously.




Hiby Link Supported

The DPS-L2 supports Hiby Link. Without even touching the DPS-L2 you can control it from your smartphone or tablets for music replay functions.



Tech Specs

  • Product ID DPS-L2
    Color Metal Blue & Silver
    Body Material Aluminum
    Display 2.4 inch IPS screen
    DAC ES9038 pro
    Sample Rates Supported Up to 32Bit/384kHz, DSD256
    Frequency Response 17Hz 20kHz +/-0.1dB
    OPAMP ID OPA1612
    THD 0.0015%
    SNR

    117dB(Single)

    119dB(Balanced)

    Resolution

    78dB@32ohm(Single)

    105dB@32ohm(Balanced)

    Supported Audio Formats

    FLAC, APE, WAV, ALAC, AIFF, MP3, WMA, AAC, DSF, DFF, ISO

    Battery Capacity 3.7v 5000 mAh Lithium Polymer Battery
    Output Type 3.5mm mini stereo phone out, 4.4mm balanced phone out
    Size 119.5 x 79.5 x 24.5 (mm), 305g

    * Special note
    Since DPS-L2 is a collaboration product of Oriolus and Jaben China.
    Oriolus Japan will only provide 1 month support after the order. For any questions, you can reach out to email : info@mini-audio.com
