OA-JC1(Digital Power Amplifier)JOYCRAFT DIY Series

OA-JC1(Digital Power Amplifier)JOYCRAFT DIY Series

Regular price $110.00 USD
Regular price Sale price $110.00 USD
Sale Sold out

SKU:

JOYCRAFT DIY Series

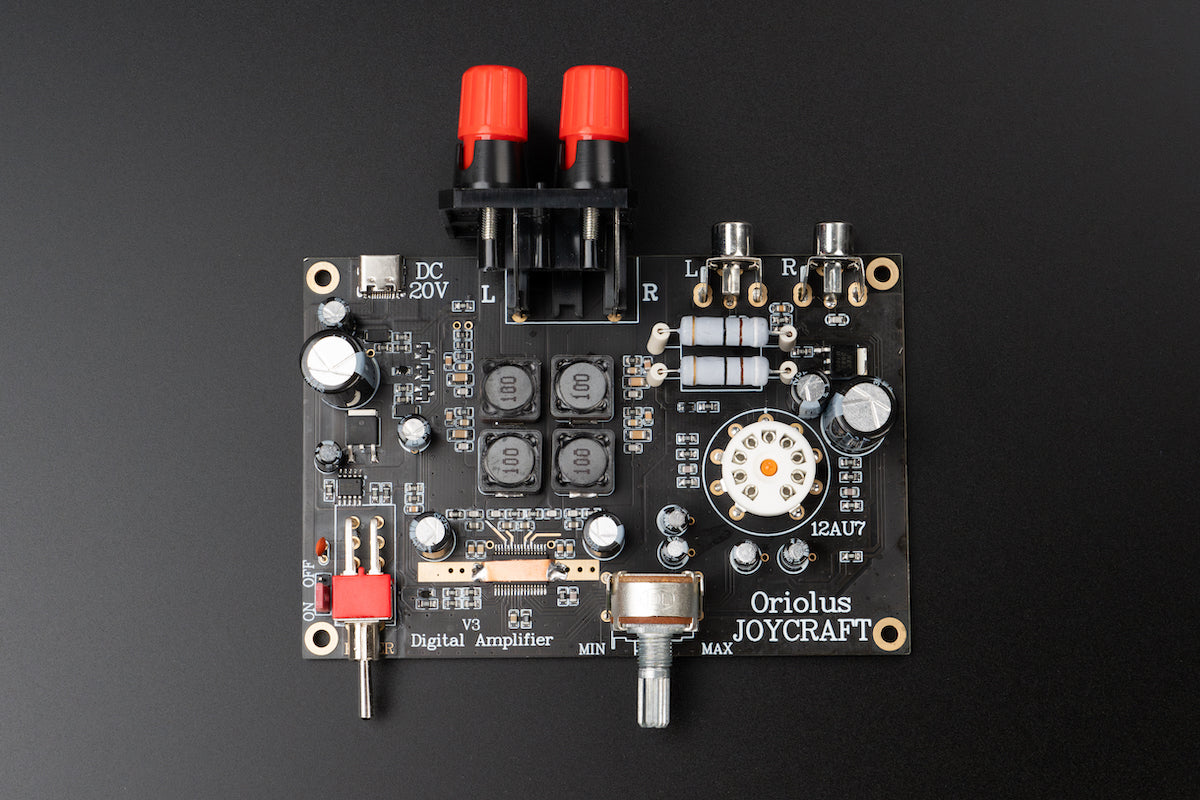

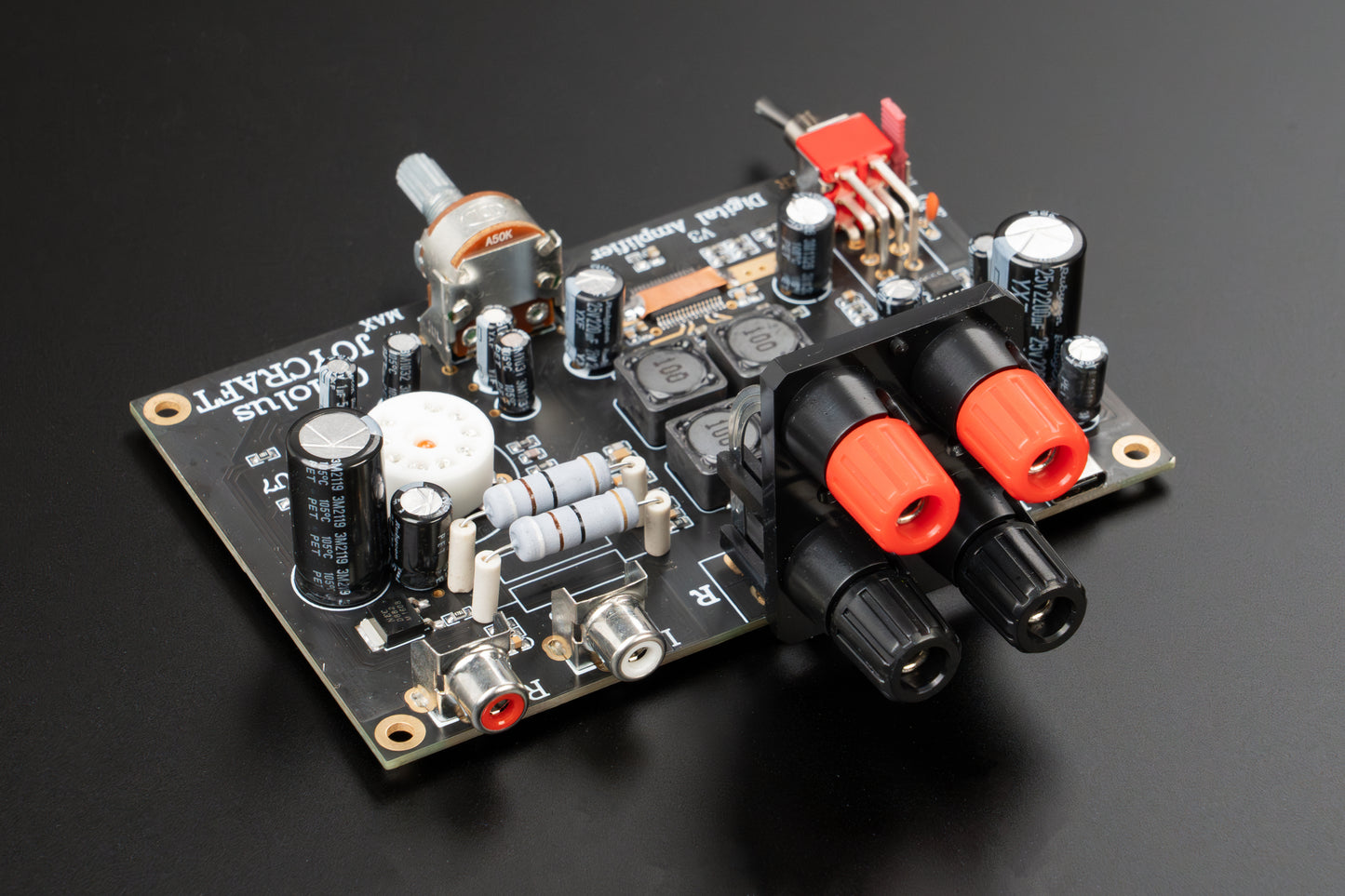

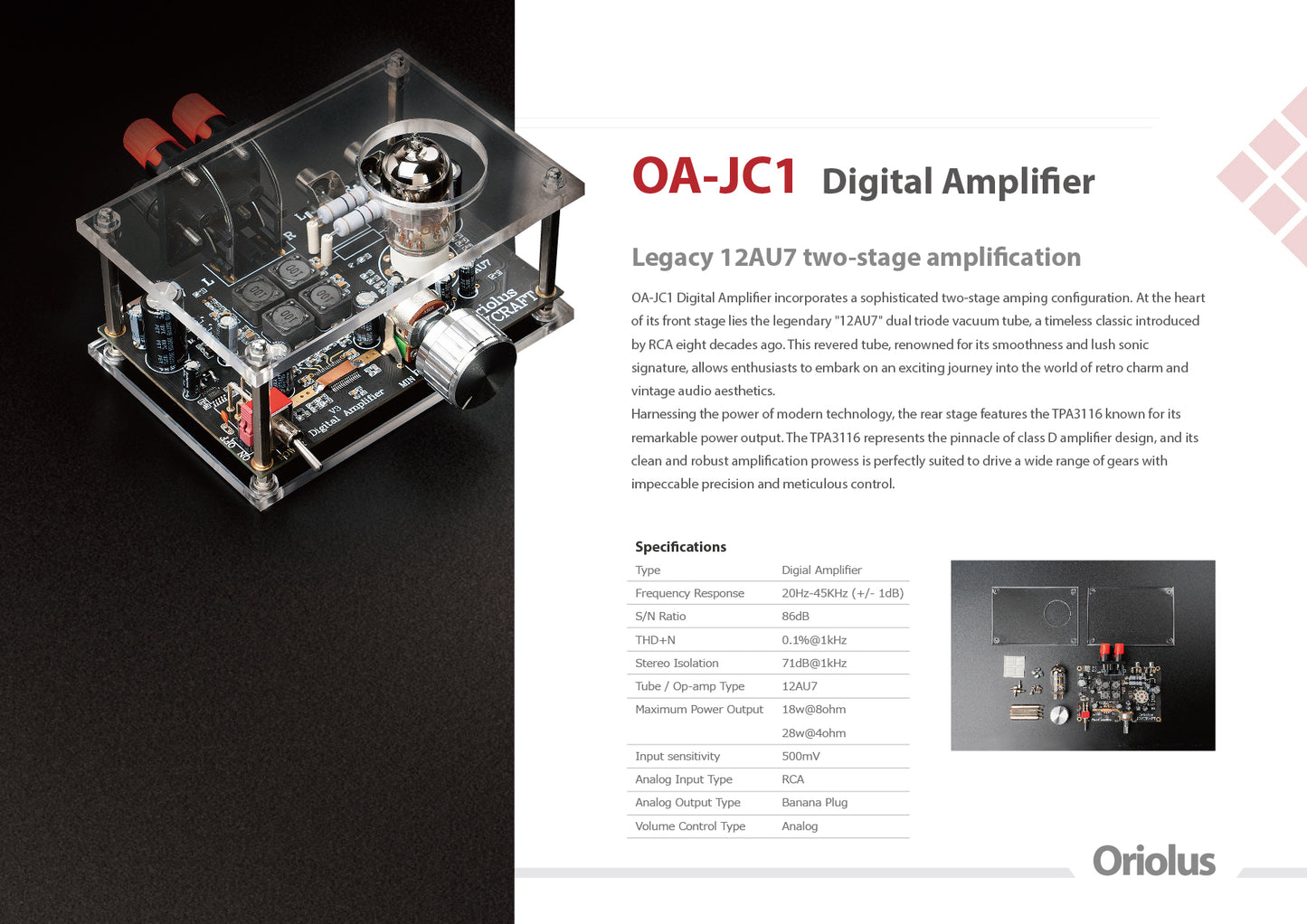

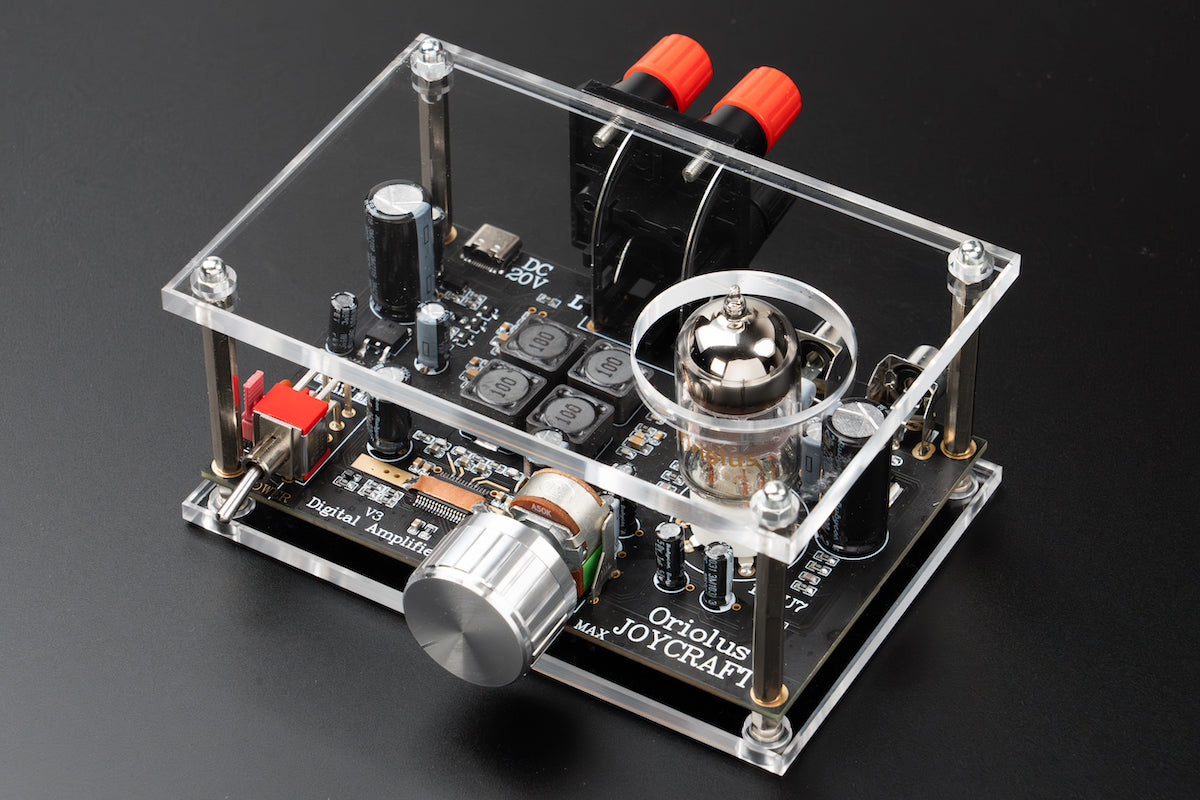

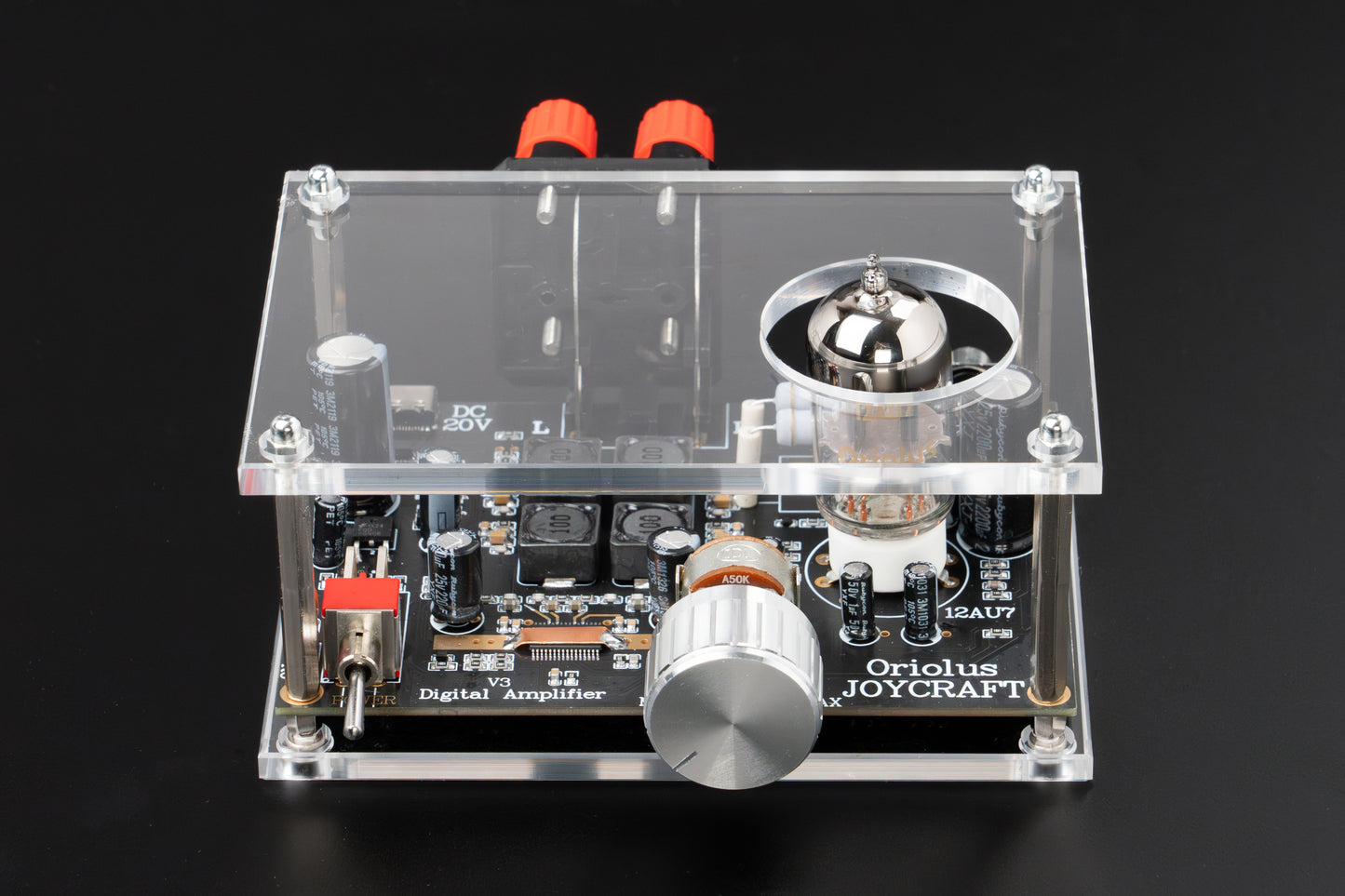

OA-JC1 Digital Power Amplifier
Classic 12AU7 Vacuum Tube Amplifier Circuit

The OA-JC1 features a precise two-stage amplifier structure. The first stage of the amplifier uses the classic 12AU7 vacuum tube, which has been in use for over 80 years and is known for its rich, smooth sound character. In the amplifier's second stage, it employs Texas Instruments' TPA3116 chip, providing powerful and clean Class D amplification. This combination allows for a detailed and immersive musical experience with both warmth and precision.

Specifications

  • Type: Digital Power Amplifier
  • Frequency Response: 20Hz-45kHz (+/-1dB)
  • S/N Ratio: 86dB
  • Total Harmonic Distortion + Noise: 0.1% @1kHz
  • Stereo Crosstalk: 71dB @1kHz
  • Vacuum Tube / Amp Chip: 12AU7 / TPA3116
  • Maximum Output Power:
    18W @ 8ohm
    28W @ 4ohm
  • Input Sensitivity: 500mV
  • Analog Output Connector: RCA
  • Analog Input Connector: Banana Plug
  • Volume Control: Analog knob

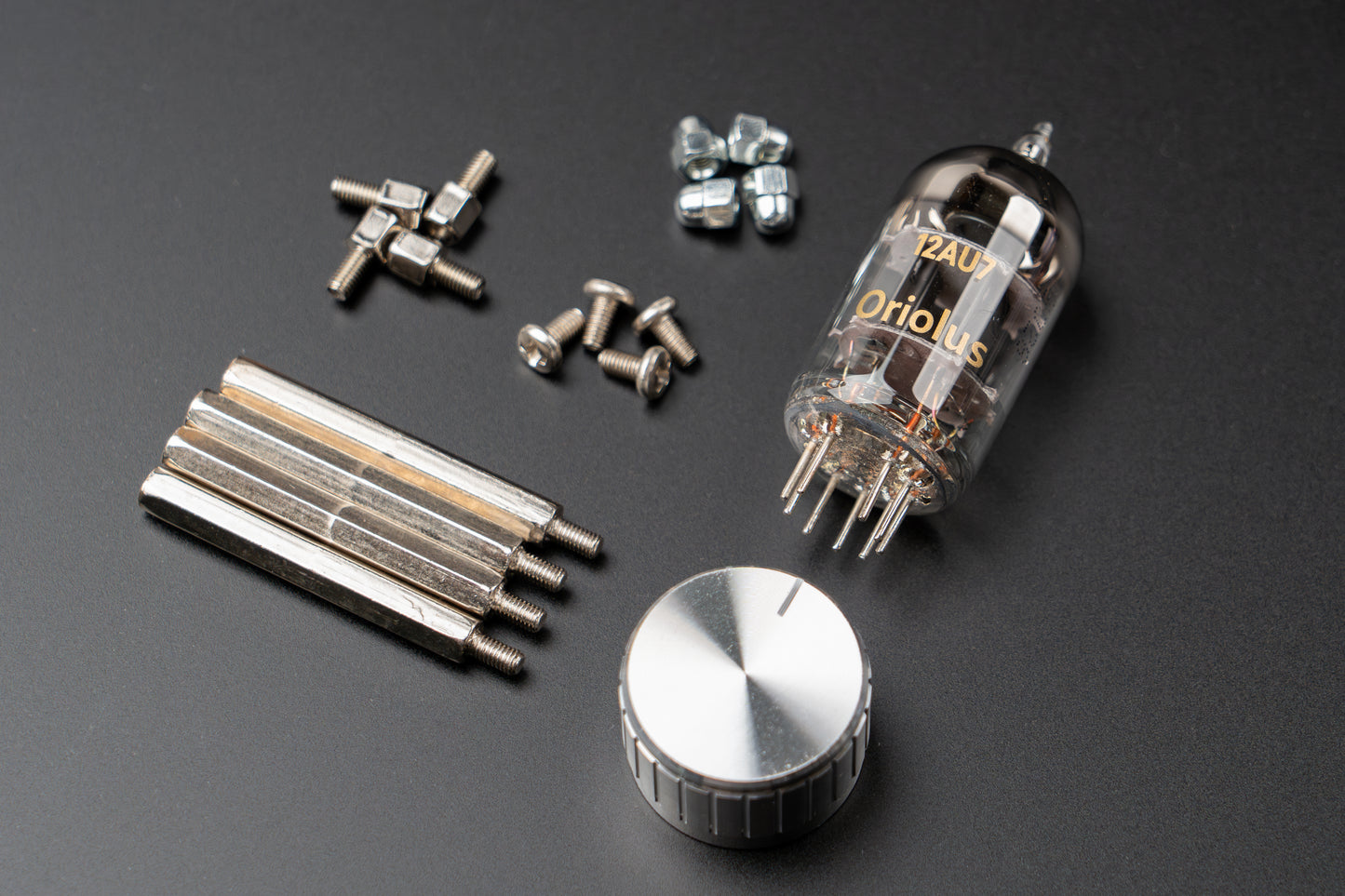

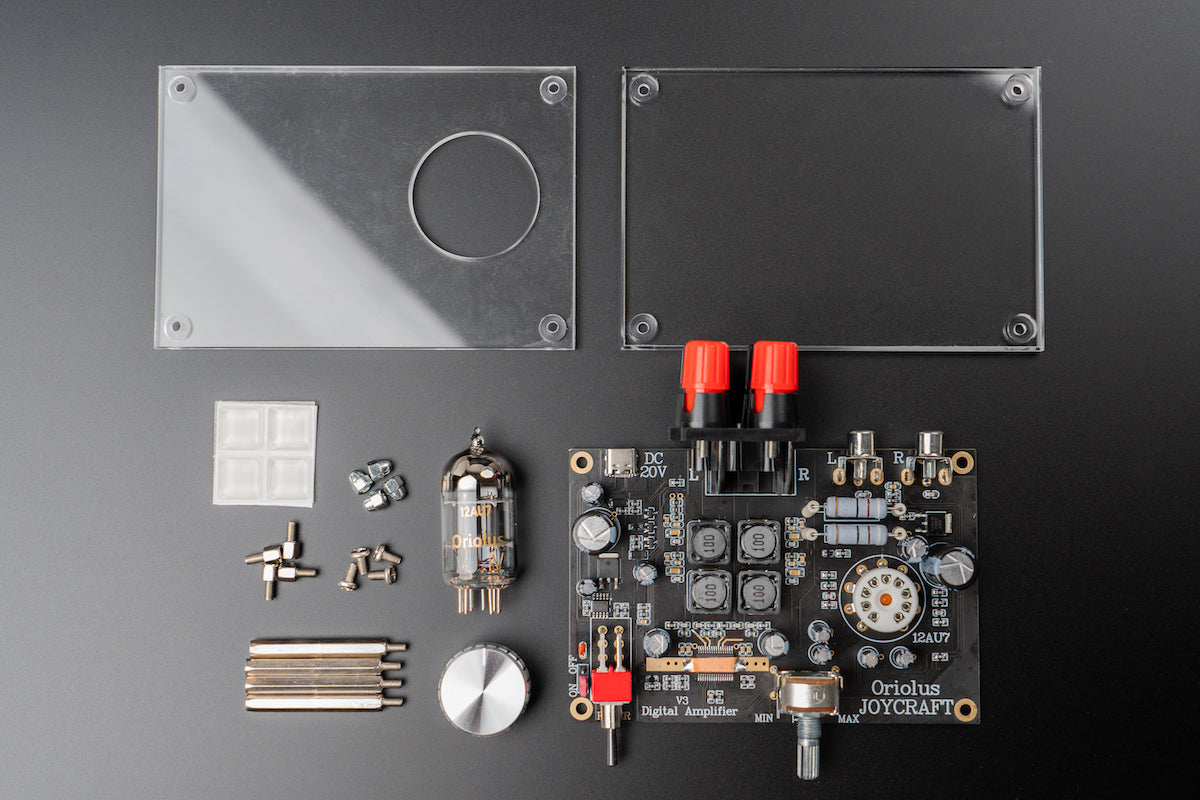

※This product requires self-assembly by the customer. (Assembly services are not available.)
※The unit requires a separately sold (DC 20V) AC adapter to operate.
(PD-compatible AC adapter and USB-C cable are not included.)
※We generally do not accept returns or exchanges except for initial defects (within one month of purchase). (Examples of initial defects: no current flow, no sound, etc.)
※Damage or malfunctions caused by the replacement or modification of vacuum tube parts are not covered.
※Please note that double (dual) banana plugs are not supported on the OA-JC1 output terminals.
